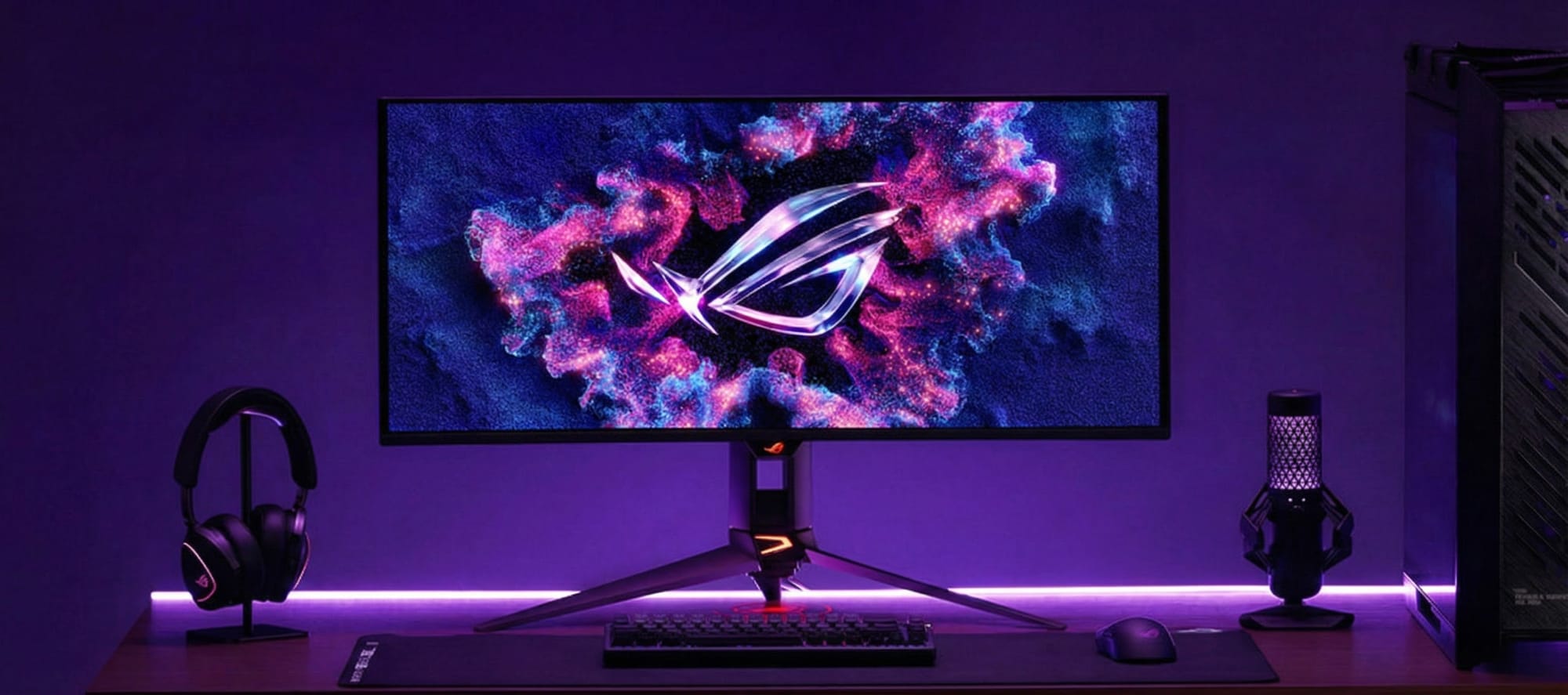

ASUS has released details on its latest ultrawide monitor, the ROG Swift OLED PG34WCDN. This 34-inch display utilizes QD-OLED technology and introduces several panel refinements aimed at addressing common critiques of OLED monitors, particularly regarding text clarity and durability.

For those of you currently mocking up a workstation or gaming rig on Configurine, this monitor presents a high-end option worth noting for your peripherals list.

Panel Specifications

The PG34WCDN features a 34-inch curved QD-OLED panel with a resolution of 3440 x 1440. The curvature is set at 1800R. This is a moderate curve suitable for both desk work and gaming immersion without being aggressive.

The headline specification here is the 360Hz refresh rate, paired with a standard 0.03ms (GTG) response time. While OLED panels are known for low latency, pushing the refresh rate to 360Hz on an ultrawide form factor is a significant step up from the previous generation's standard of 175Hz or 240Hz.

Addressing Text Clarity

One specific technical detail that differentiates this model is the use of an RGB Stripe Pixel sub-pixel arrangement.

Previous QD-OLED implementations often used triangular sub-pixel layouts. These layouts could result in color fringing around text and high-contrast lines. By reverting to a traditional RGB stripe layout, the PG34WCDN should offer sharper text rendering. This is a practical improvement for users who intend to use the monitor for productivity tasks alongside gaming.

Durability and "BlackShield"

ASUS has implemented a new coating called BlackShield film. According to the manufacturer, this layer serves two purposes:

  1. Scratch Resistance: It reportedly increases panel hardness and offers 2.5x better resistance to scratches than previous generations.
  2. Contrast: It aims to reduce ambient light reflection to improve perceived black levels in well-lit rooms.

Thermal management is handled by a custom passive heatsink, which is a critical feature for OLED longevity. The monitor also includes the ASUS OLED Care Pro suite. This software utilizes a "Neo Proximity Sensor" to detect user presence. The screen can dim or turn off automatically when the user steps away to prevent static image retention.

Connectivity

The I/O selection is forward-looking and notably includes DisplayPort 2.1a. This supports the full 80Gbps bandwidth (UHBR20). This allows for uncompressed transmission of the panel's native resolution and refresh rate.

Additional connectivity includes:

  • HDMI 2.1
  • USB-C with 90W Power Delivery (suitable for charging laptops while driving the display)
  • Smart KVM functionality

Summary

The ROG Swift OLED PG34WCDN represents an iterative but meaningful update in the OLED space. The shift to an RGB sub-pixel layout and the inclusion of high-bandwidth DisplayPort 2.1a suggest ASUS is targeting longevity and mixed-use scenarios rather than just raw gaming performance.
